LSH-703 Vertical-wing plaster-in LED Aluminum Profile
LSH-703 is a vertical-wing plaster-in LED aluminum profile with a vertical perforated flange beside the light channel. The catalog shows a 33 mm height. It is a candidate for plasterboard edges, vertical reveals and ceiling perimeter details.
The 12 mm face dimension helps distinguish this section within the range. Specify the drawing together with the item number when requesting a quotation. The aluminum housing and cover form part of a lighting assembly; LED strip, driver, wiring and installation details must be selected for the project.
LSH-703 Vertical-wing plaster-in LED Aluminum Profile
LSH-703 is a vertical-wing plaster-in LED aluminum profile with a vertical perforated flange beside the light channel. The catalog shows a 33 mm height. It is a candidate for plasterboard edges, vertical reveals and ceiling perimeter details.
The 12 mm face dimension helps distinguish this section within the range. Specify the drawing together with the item number when requesting a quotation. The aluminum housing and cover form part of a lighting assembly; LED strip, driver, wiring and installation details must be selected for the project.
1. Main Features

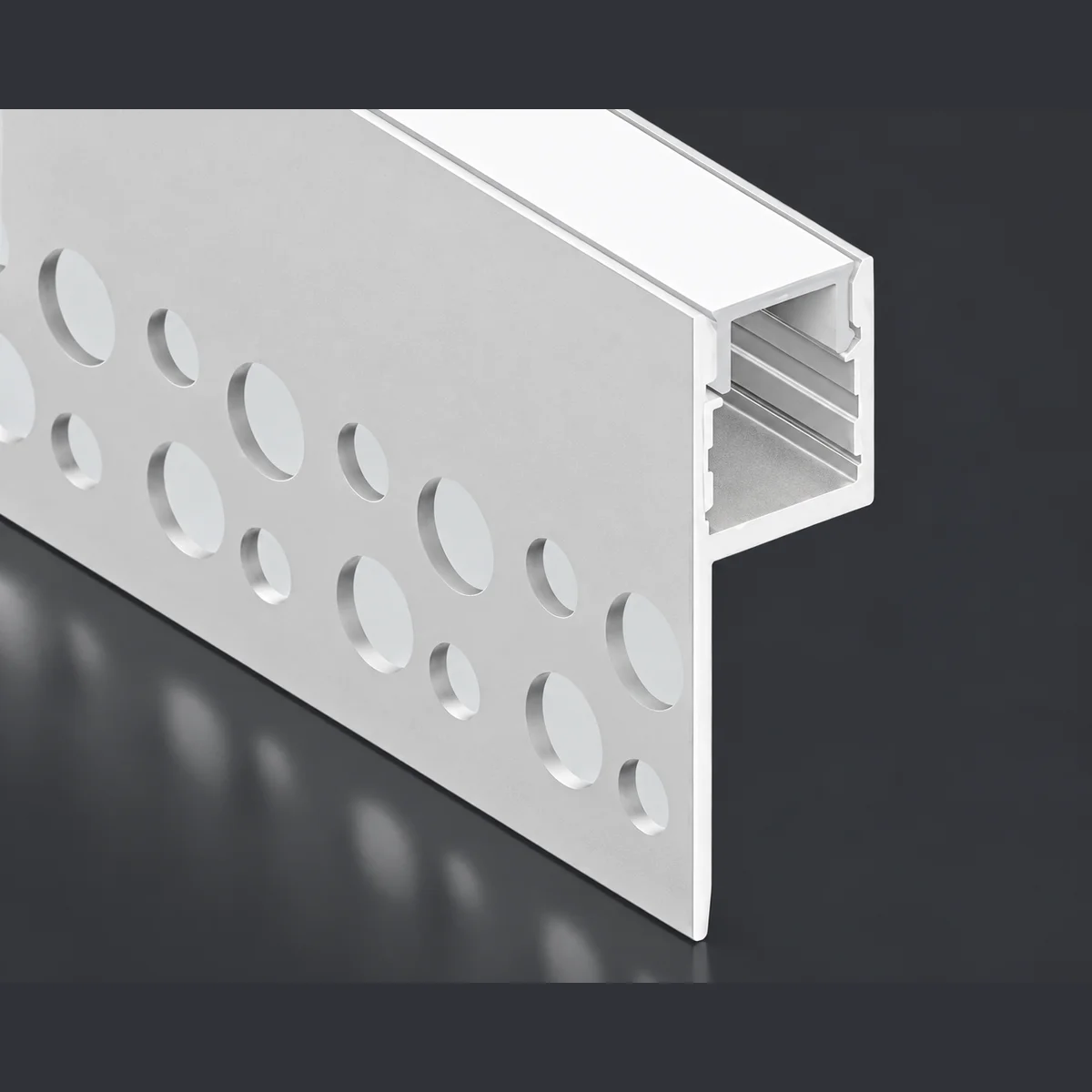

Use the product photographs and an approved section drawing to review this model. Confirm the complete housing, diffuser and accessory configuration before ordering.

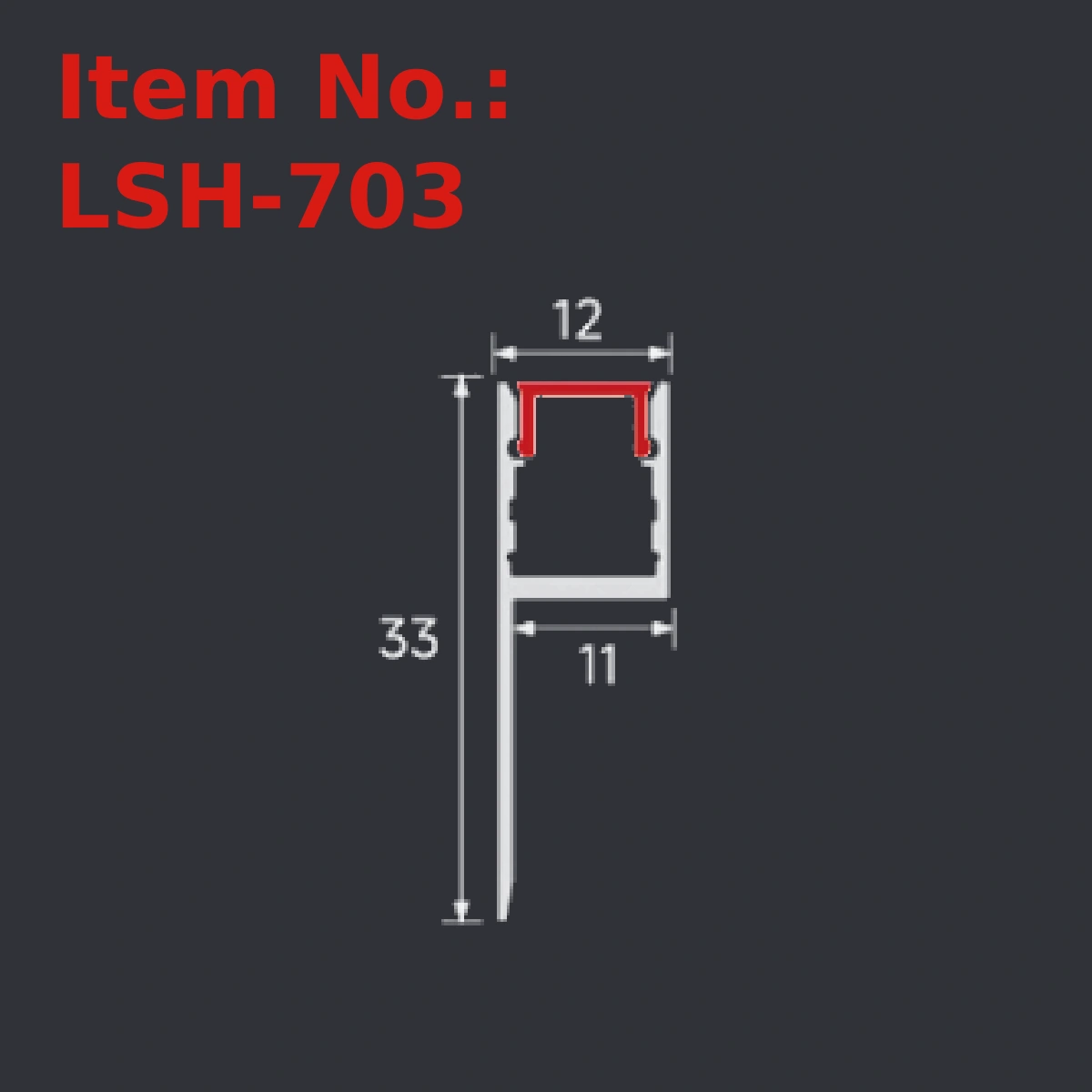

Specifications and section drawing
| Item No. | LSH-703 |
|---|---|
| Profile family | Vertical-wing plaster-in |
| Overall width incl. wing(s), mm | |
| Catalog overall height, mm | 33 |
| Face / top dimension label, mm | 12 |
| Internal dimension label, mm | 11 |
| Other chamber depth label, mm | |
| Dimension source | suspection |
| Drawing notes | |
| Approved maximum LED strip width | 8mm |
| Aluminum grade, | 6065 T5 |
| Cover material and light transmission | OPTION |
| Finish, stock length and cut tolerance | 1m,2m,2.5m,3m or requirement |
| Rated strip power and thermal validation | |
| Included accessories | end caps, clipes |
Application ideas
Consider LSH-703 for plasterboard edges, vertical reveals and ceiling perimeter details. These are proposed applications based on the visible structure, not verified project references. For an office or corridor, coordinate the light line with ceiling joints and service access. For a retail or hospitality interior, review the unlit appearance and glare from the actual viewing positions.
A profile photograph cannot establish ingress protection, emergency-lighting suitability, fire performance or photometric compliance. Where a specification requires one of these properties, obtain documentation for the complete assembly.
Selection and compatibility
Match the wing orientation to the board edge and framing detail. A vertical wing cannot be substituted for a flat double-wing profile without changing the construction detail.
This is a narrow-face candidate where a restrained light line matters. Confirm the actual LED mounting area before choosing a strip. A connector or solder joint may need more space than the strip PCB.
Approve the mounting side, end treatment and diffuser removal route before closing the surrounding plasterboard.
Installation planning
Selection check 1
Approve the profile section, board thickness, recess and finished light opening on a project drawing.
Selection check 2
Dry-fit a sample with the selected cover, strip, end caps and cable entry. Check removal access.
Selection check 3
Fix the profile to a suitable support using the agreed flange detail. Do not rely on finishing compound alone.
Protect the LED channel and diffuser seat during plastering
Protect the LED channel and diffuser seat during plastering. Use the joint-reinforcement and compound system specified for the construction.
Selection check 5
After finishing and cleaning, install and test the strip, wiring and cover according to the approved assembly instructions.
Quality checks before ordering
For LSH-703, begin with the dimensional checks shown above. Compare the production section with the approved drawing, check straightness and inspect the diffuser engagement along the full length. Look for burrs at cut ends and blocked flange perforations.
Match the wing orientation to the board edge and framing detail. A vertical wing cannot be substituted for a flat double-wing profile without changing the construction detail. Use a lit sample to assess spotting, cover movement and the finished plaster edge. Record the agreed visual acceptance criteria before bulk production. Heating depends on the strip, thermal contact and installation environment; a thicker-looking profile is not proof of a permitted wattage.
Send the item number, required lengths, quantity per length, housing finish, cover preference and destination. Include your strip dimensions and any solder pads or connectors, as well as the wall or ceiling detail. We can review whether the illustrated section is suitable or whether a structural change needs assessment.
Request a quotation that separates the aluminum profile, cover, end caps, machining, packaging and freight. Confirm whether LED strips and drivers are included. Tooling, samples, payment stages, currency, shipping term and delivery schedule must be agreed in the written quotation.
7. Request a Quote
Request a quotation or sample for LSH-703 Vertical-wing plaster-in LED Aluminum Profile. Include the required lengths, quantities, installation detail and unresolved specification points.
Frequently asked questions
What does the item number tell me?
Use LSH-703 as an identifier. The drawing defines the geometry; model digits and suffixes are not a substitute for an approved dimensioned section.
Which LED strip fits?
8mm strips will be suitable all items
Will the finished line be dot-free?
Yes, they re dot free
Can this be ordered for an outdoor installation?
No outdoor or IP rating is established by these catalog images. Confirm a tested assembly if the project requires one.
