LSH-1013DD Double-wing plaster-in LED Aluminum Profile

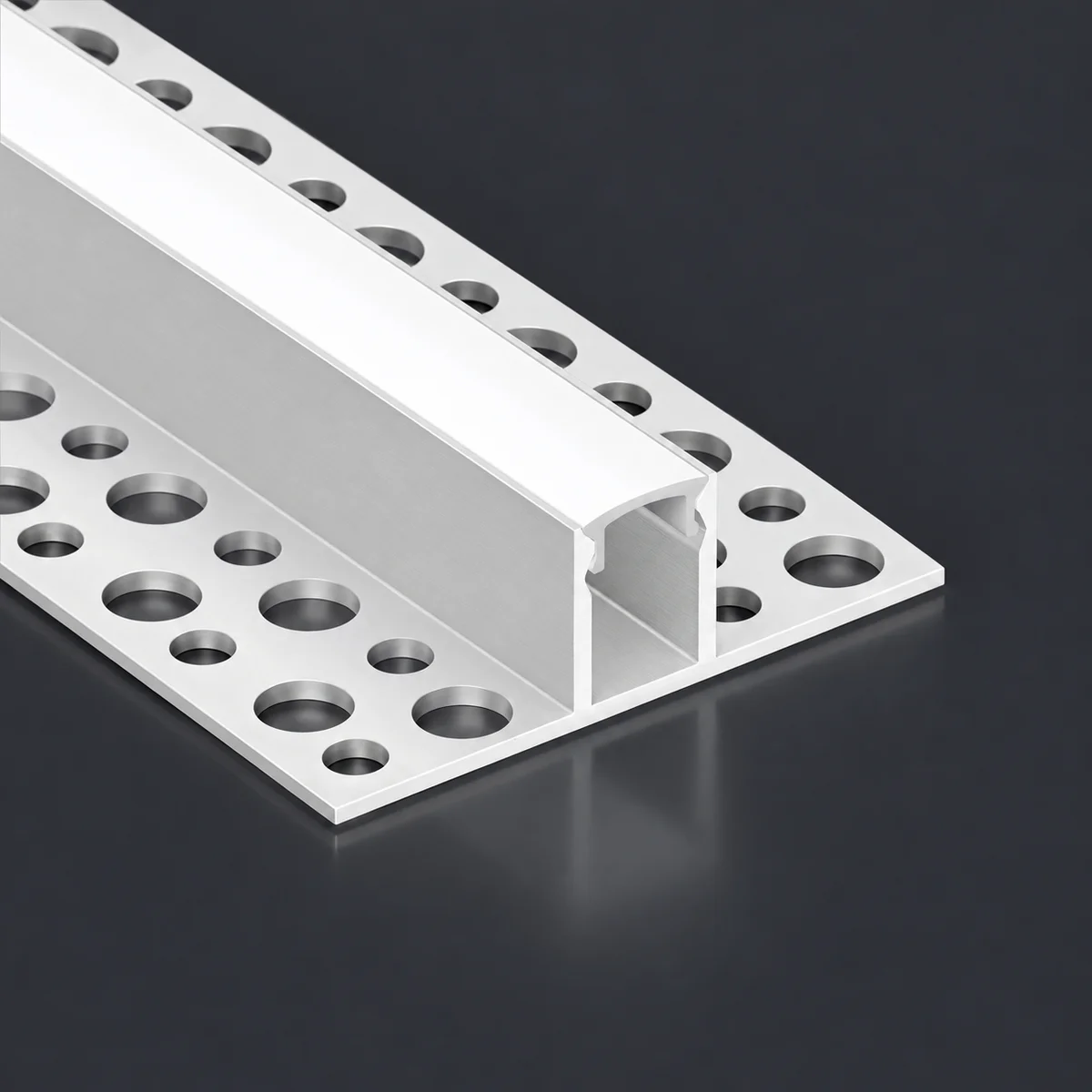

LSH-1013DD is a double-wing plaster-in LED aluminum profile with perforated fixing wings on both sides of a central diffuser channel. The catalog shows a 13 mm height and 46 mm overall width. It is a candidate for straight ceiling slots, corridor light lines and recessed wall accents.
The 10 mm face dimension helps distinguish this section within the range. Specify the drawing together with the item number when requesting a quotation. The aluminum housing and cover form part of a lighting assembly; LED strip, driver, wiring and installation details must be selected for the project.
LSH-1013DD Double-wing plaster-in LED Aluminum Profile
LSH-1013DD is a double-wing plaster-in LED aluminum profile with perforated fixing wings on both sides of a central diffuser channel. The catalog shows a 13 mm height and 46 mm overall width. It is a candidate for straight ceiling slots, corridor light lines and recessed wall accents.
The 10 mm face dimension helps distinguish this section within the range. Specify the drawing together with the item number when requesting a quotation. The aluminum housing and cover form part of a lighting assembly; LED strip, driver, wiring and installation details must be selected for the project.
1. Main Features
Use the product photographs and an approved section drawing to review this model. Confirm the complete housing, diffuser and accessory configuration before ordering.

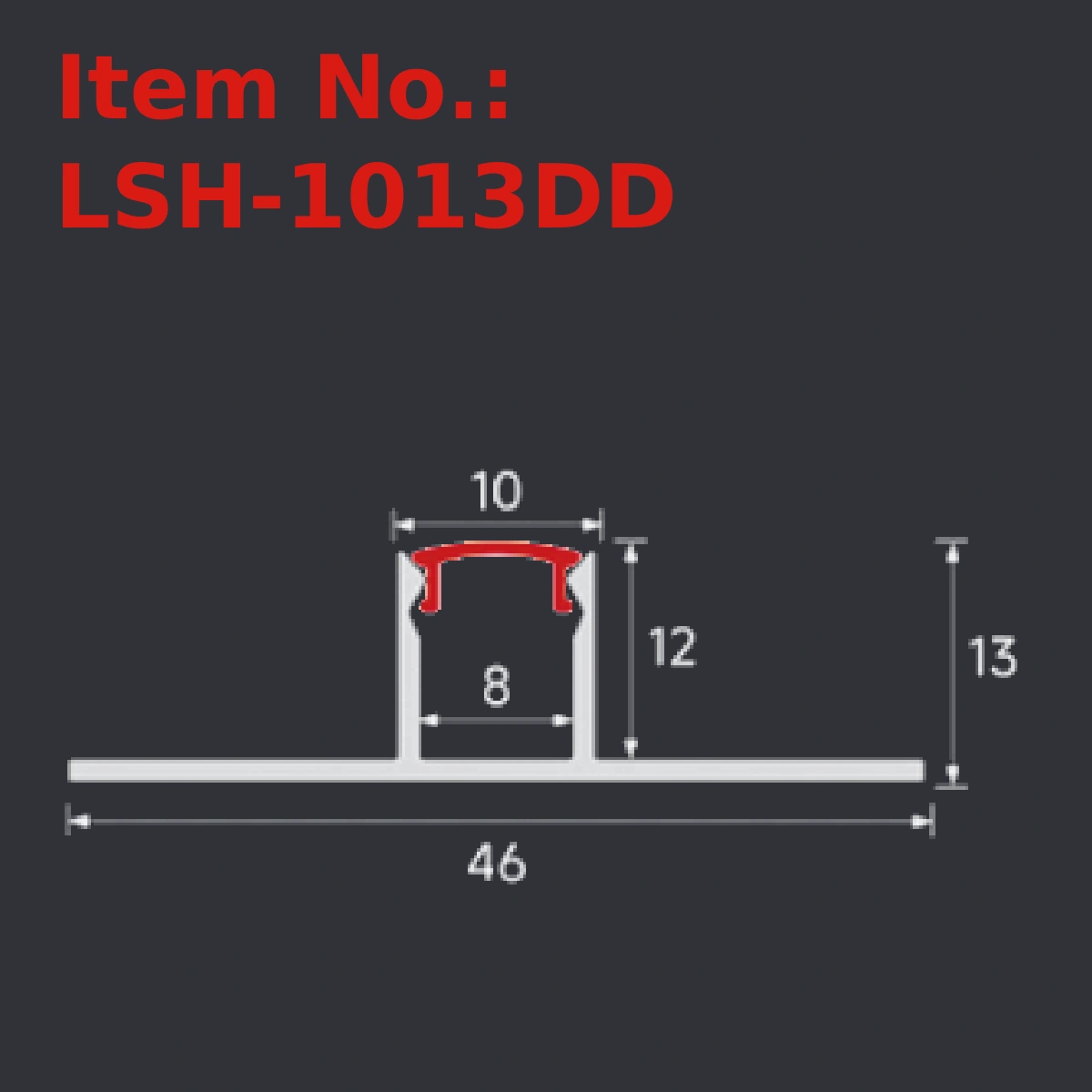

Specifications and section drawing
| Item No. | LSH-1013DD |
|---|---|
| Profile family | Double-wing plaster-in |
| Overall width incl. wing(s), mm | 46 |
| Catalog overall height, mm | 13 |
| Face / top dimension label, mm | 10 |
| Internal dimension label, mm | 8 |
| Other chamber depth label, mm | 12 |
| Dimension source | suspection |
| Drawing notes | |
| Approved maximum LED strip width | 8mm |
| Aluminum grade, | 6065 T5 |
| Cover material and light transmission | OPTION |
| Finish, stock length and cut tolerance | 1m,2m,2.5m,3m or requirement |
| Rated strip power and thermal validation | |
| Included accessories | end caps, clipes |
Application ideas
Consider LSH-1013DD for straight ceiling slots, corridor light lines and recessed wall accents. These are proposed applications based on the visible structure, not verified project references. For an office or corridor, coordinate the light line with ceiling joints and service access. For a retail or hospitality interior, review the unlit appearance and glare from the actual viewing positions.
A profile photograph cannot establish ingress protection, emergency-lighting suitability, fire performance or photometric compliance. Where a specification requires one of these properties, obtain documentation for the complete assembly.
Selection and compatibility
Check the flange elevation and channel orientation on the section drawing. Models with similar face widths can have different body depths and fixing levels.
This is a narrow-face candidate where a restrained light line matters. Confirm the actual LED mounting area before choosing a strip. A connector or solder joint may need more space than the strip PCB.
The fixing wings appear at the lower level of the channel in this catalog view. Confirm the board position and which face is exposed in the approved installation drawing.
Installation planning
Selection check 1
Approve the profile section, board thickness, recess and finished light opening on a project drawing.
Selection check 2
Dry-fit a sample with the selected cover, strip, end caps and cable entry. Check removal access.
Selection check 3
Fix the profile to a suitable support using the agreed flange detail. Do not rely on finishing compound alone.
Protect the LED channel and diffuser seat during plastering
Protect the LED channel and diffuser seat during plastering. Use the joint-reinforcement and compound system specified for the construction.
Selection check 5
After finishing and cleaning, install and test the strip, wiring and cover according to the approved assembly instructions.
Quality checks before ordering
For LSH-1013DD, begin with the dimensional checks shown above. Compare the production section with the approved drawing, check straightness and inspect the diffuser engagement along the full length. Look for burrs at cut ends and blocked flange perforations.
Check the flange elevation and channel orientation on the section drawing. Models with similar face widths can have different body depths and fixing levels. Use a lit sample to assess spotting, cover movement and the finished plaster edge. Record the agreed visual acceptance criteria before bulk production. Heating depends on the strip, thermal contact and installation environment; a thicker-looking profile is not proof of a permitted wattage.
Send the item number, required lengths, quantity per length, housing finish, cover preference and destination. Include your strip dimensions and any solder pads or connectors, as well as the wall or ceiling detail. We can review whether the illustrated section is suitable or whether a structural change needs assessment.
Request a quotation that separates the aluminum profile, cover, end caps, machining, packaging and freight. Confirm whether LED strips and drivers are included. Tooling, samples, payment stages, currency, shipping term and delivery schedule must be agreed in the written quotation.
7. Request a Quote
Request a quotation or sample for LSH-1013DD Double-wing plaster-in LED Aluminum Profile. Include the required lengths, quantities, installation detail and unresolved specification points.
Frequently asked questions
What does the item number tell me?
Use LSH-1013DD as an identifier. The drawing defines the geometry; model digits and suffixes are not a substitute for an approved dimensioned section.
Which LED strip fits?
8mm strips will be suitable all items
Will the finished line be dot-free?
Yes, they re dot free
Can this be ordered for an outdoor installation?
No outdoor or IP rating is established by these catalog images. Confirm a tested assembly if the project requires one.
