GD-004 Recessed LED Aluminum Profile, Side-Emitting Channel
GD-004 is a side-emitting recessed LED aluminum profile shown with a narrow upright light opening and a ribbed housing. Review the section and approve the mounting detail before ordering.
1. Main Features of the Recessed LED Profile
GD-004 is a recessed LED strip housing for a prepared groove or coordinated mounting detail. The supplied photograph shows a narrow upright light opening and a ribbed housing. Its section is the useful starting point for comparing the body, trim and diffuser, while the finished lighting effect depends on the complete assembly.
Align the side-facing opening with the intended viewing direction rather than assuming the light exits upward.
- A defined housing for a compatible LED tape and cover. Confirm the exact matching parts.
- A section-specific flange or seating detail. A top trim width is not a cut-out width.
- An aluminum mounting surface that can help transfer heat from the tape. The permissible load needs a thermal check.
- A serviceable lighting detail when the diffuser, cable and driver remain accessible.
Align the side-facing opening with the intended viewing direction rather than assuming the light exits upward.
Compare the photo with the matching section before selecting accessories.
Diffuser and installation configuration: [TO CONFIRM].

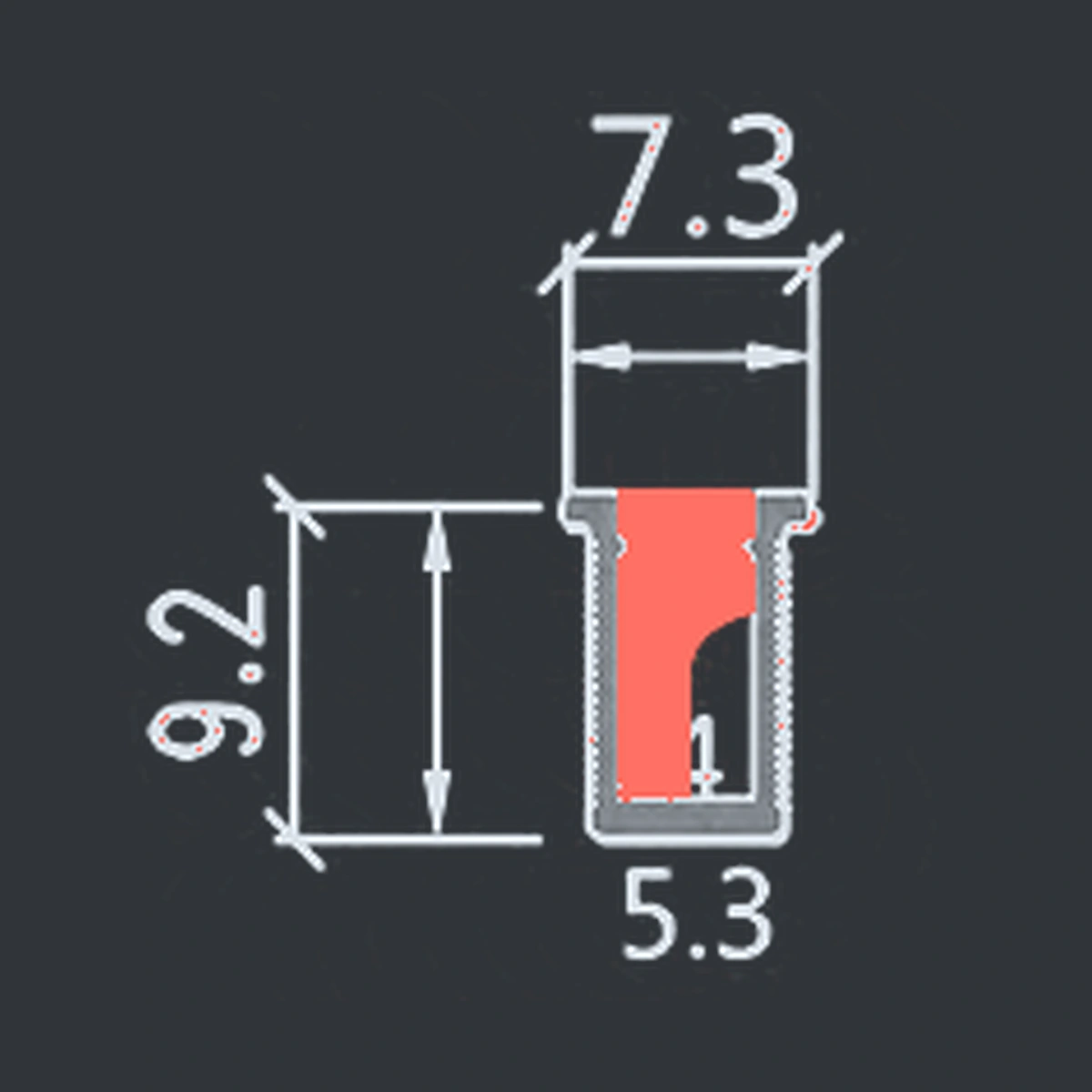

Matching section drawing supplied; annotations require confirmation against an approved drawing.
2. Technical Specifications
| Item No. | GD-004 |
|---|---|
| Profile structure | Side-Emitting Channel |
| Observed geometry | a narrow upright light opening and a ribbed housing |
| Overall width × height | See Cross Section |
| Recess / cut-out dimensions | See Cross Section |
| Usable LED tape bed | See Cross Section |
| Drawing status | |
| Aluminum alloy / temper | Anodized |
| Wall thickness / weight | |
| Diffuser | clear,opal,frost,black |
| Surface finish / colours | Silver |
| Length | 1m,2m,2.5m,3m or requirement. |
| IP / power / certification | |
| warranty | 5 Years |
3. Applications of Recessed LED Aluminum Profiles
Review these proposed uses against the actual section, substrate and lighting requirement. They describe possible project contexts, not certified performance.
Shelf-edge accents
For shelf-edge accents, check the GD-004 body against the available construction depth. Align the side-facing opening with the intended viewing direction rather than assuming the light exits upward. Build a sample with the chosen tape, cover and finish before approving a full run.
Display cabinet edges
For display cabinet edges, check the GD-004 body against the available construction depth. Align the side-facing opening with the intended viewing direction rather than assuming the light exits upward. Build a sample with the chosen tape, cover and finish before approving a full run.
Furniture side details
For furniture side details, check the GD-004 body against the available construction depth. Align the side-facing opening with the intended viewing direction rather than assuming the light exits upward. Build a sample with the chosen tape, cover and finish before approving a full run.
Outdoor, wet-area, fire-rated or load-bearing suitability requires a separate verified specification. A profile photograph does not establish those ratings.
4. How to Choose the Right Recessed LED Profile
Start the selection of GD-004 with a marked-up section of the real installation. Align the side-facing opening with the intended viewing direction rather than assuming the light exits upward.
Selection check 1
Measure lower-body width and depth, total trim width and the support beneath each edge. Allow for the actual manufacturing and site tolerances.
Selection check 2
Check board thickness, fastening access and whether the housing can be removed after finishing. Confirm the fixing method for this section.
Selection check 3
Test tape, adhesive, solder pads, cables and connectors inside the usable bed. The model identifier does not define strip compatibility.
Selection check 4
Evaluate diffuser fit, LED pitch, optical distance and normal viewing angles together. Confirm the light line with a powered sample.
Plan end caps, corners, cable exits and driver location
Plan end caps, corners, cable exits and driver location. Provide a maintenance path before the recess is closed.
5. Quality Checks Before Bulk Purchasing
Approve a sample of GD-004 and retain it with the signed drawing. A similar outline or a lower quotation does not establish an interchangeable product.
- Check width, height, straightness, flange flatness and cover-retaining features against the approved tolerances.
- Ask for the agreed alloy and temper. Measure wall thickness at defined points and record weight per metre for comparison.
- Inspect visible faces for scratches, uneven coating and colour variation. Compare production lengths under the intended light.
- Fit and remove the cover several times without distorting the retaining edges. Check the supplied end caps and fixing parts.
- Run the proposed tape in the real installation to assess thermal behaviour. A deeper or heavier-looking body is not a verified wattage rating.
- Check carton support, separators, length labels and end protection. Record cosmetic acceptance criteria before shipment.
Approve the sample, drawing and packing specification before mass production.
6. Customization and Project Support
For a GD-004 enquiry, send the construction section, selected tape dimensions, lengths, quantities, finish, diffuser and destination. Mark any obstruction, connector location or access limitation directly on a drawing.
Unionopto can review whether the requested detail fits an existing section or needs tooling or machining changes. [TO CONFIRM: available finishes, cut lengths, machining, diffuser choices, tooling fees, sample lead time and MOQ].
Compare quotations for the same bill of materials. List the housing, cover, end caps, clips, machining, packaging and freight separately. Confirm currency, Incoterms, quote validity, sample charges, payment stages and lead time in writing. No fixed price, deposit percentage or delivery promise is assumed.
7. Request a Quote for Recessed LED Aluminum Profiles
Request a drawing review or sample for GD-004. Include the full model, order quantity, lengths, mounting section, LED tape and connector details, cover appearance and destination.
