LSH-6026 Angled LED Cove Lighting Profile

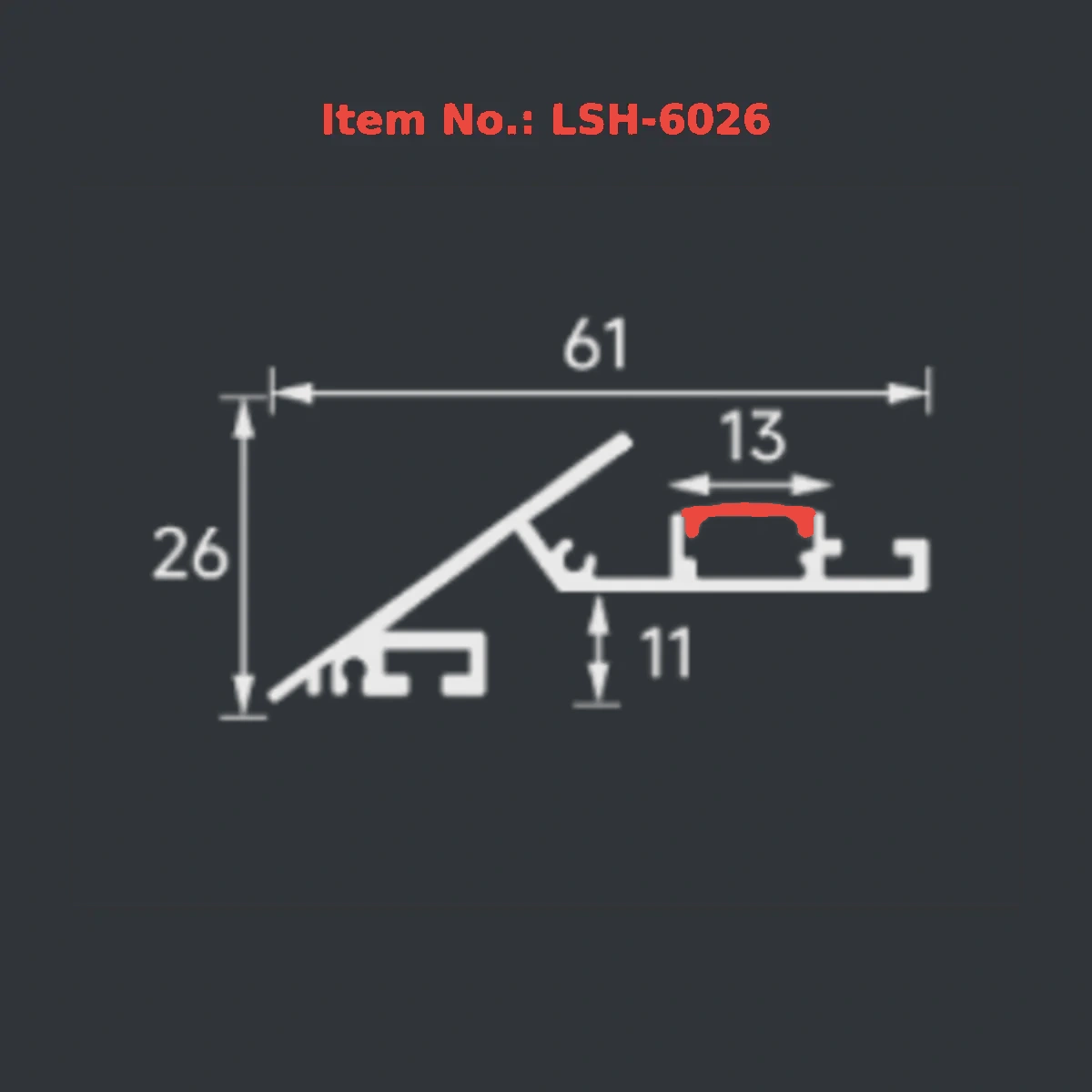

LSH-6026 for compact ceiling edge lighting. See the model-specific section drawing
Item No.: LSH-6026
1. Main Features
LSH-6026 is a slim ceiling led aluminum profile for compact ceiling edge lighting. The catalogue shows an angled architectural section with a low-profile light chamber. Use its individual cross-section to assess the architectural detail, fixing area and LED tape arrangement.

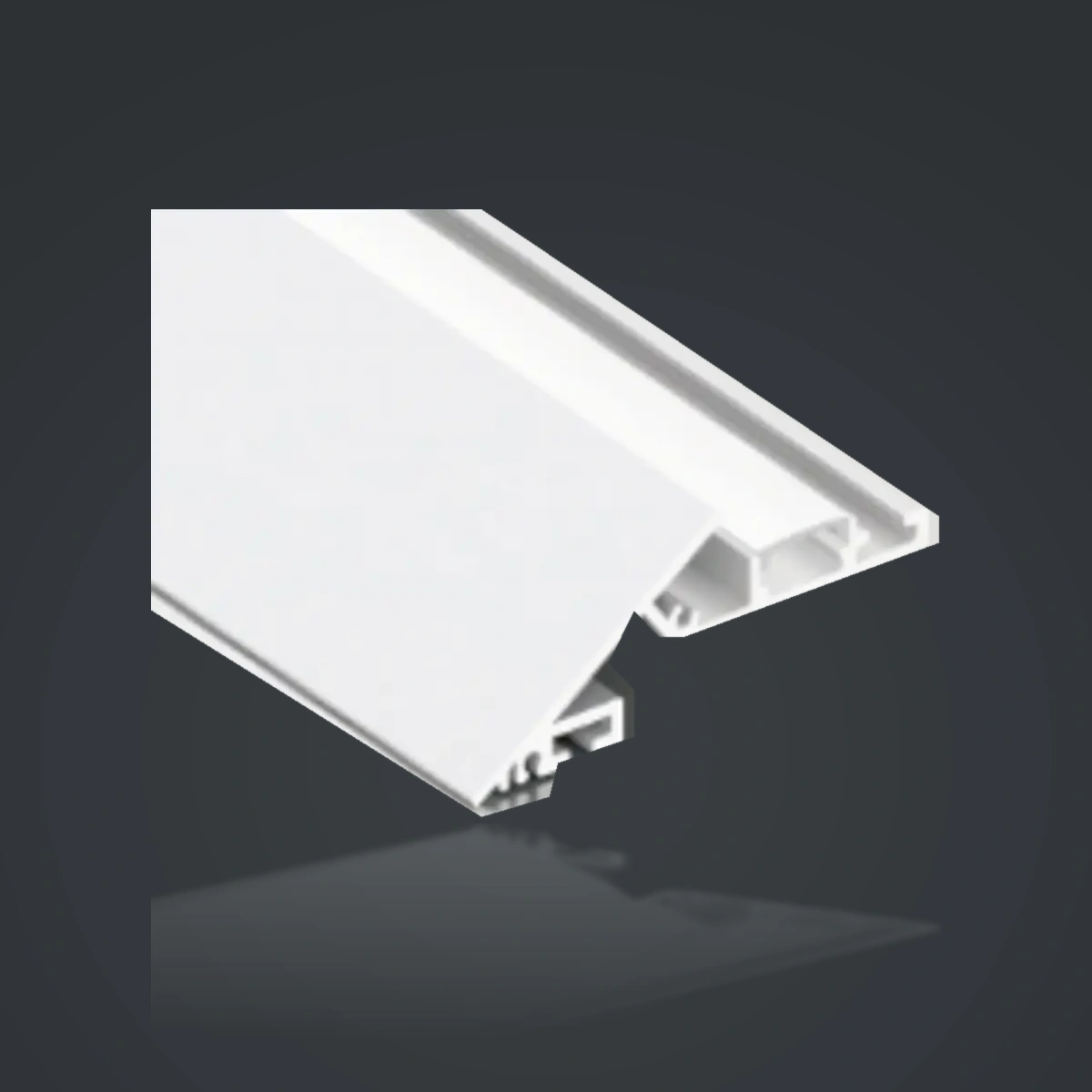

Check the two-plane section and narrow light chamber. Confirm which surface receives the LED tape. A product photograph is useful for comparing shape, but the final installation should follow an approved drawing and a physical sample. Confirm the complete profile, diffuser, LED tape and mounting combination before ordering.
- Section-specific design: The visible structure combines an angled architectural section with a low-profile light chamber.
- Architectural coordination: Check thin edges, the actual mounting plane and tape clearance.
- LED and cover selection: Compare the complete tape and diffuser combination for fit, appearance and access. A visible cover shape does not identify its material or transmission.
- Order consistency: Approve the same profile version, finish, cover and accessories for the sample and bulk order.
2. Technical Specifications
| Product | LSH-6026 Angled LED Cove Lighting Profile |
|---|---|
| Model | LSH-6026 |
| Catalogue version | No additional version noted |
| Intended application | compact ceiling edge lighting |
| Overall dimensions | |
| Catalogue envelope reference | 61 × 26 |
| Drawing status | |
| Aluminum alloy / temper | Anodized |
| Wall thickness / weight | |
| Diffuser material / finish | PC cover |
| Usable LED tape bed | COB |
| Length / surface finish | 1m,2m,3m |
| Accessories / packaging | end caps and clips |
| Electrical / IP / certification | |
| Warranty / lead time / MOQ |
3. Applications
Compact ceiling edges
Check the angled section where installation depth is restricted. A shallow envelope still needs cable and connector space.
Decorative wall details
Review the plane that carries the LED tape and the direction of the cover. Confirm the fixing method on a construction detail.
Reception and display areas
Compare the visual edge with adjacent finishes. Check light uniformity using the intended tape density and cover.
These are proposed applications based on the section geometry. Suitability for moisture, outdoor exposure, fire-rated construction or other special conditions requires a separate verified specification.
4. How to Choose the Right Profile
Start with this section:
Start with this section: Check the two-plane section and narrow light chamber. Confirm which surface receives the LED tape.
Check the mounting detail:
Check the mounting detail: Show the board thickness, support, fixing positions and finished plaster or paint line. Confirm whether the profile is installed before or after the board and finish.
Test LED tape fit:
Test LED tape fit: Measure the usable bed and include the PCB, adhesive, solder pads, cable and connectors. Do not order tape by the model number alone.
Review light appearance:
Review light appearance: Test the chosen LED density, diffuser and surrounding surfaces. A dot-free appearance depends on the complete arrangement.
Plan access:
Plan access: Identify how the diffuser, tape, connector and driver can be reached after installation. Confirm cable routes before closing the ceiling.
5. Quality Checks Before Bulk Purchasing
Evaluate a sample of LSH-6026 against the latest drawing before approving a bulk order. A lower price can reflect a different version, cover, wall thickness, finish, included accessory set or packaging specification.
- Compare external dimensions, the usable light chamber, cover locking features and straightness with the agreed tolerances.
- Measure wall thickness at agreed points. Do not replace a measured specification with labels such as heavy-duty or premium.
- Check the cover for fit, consistent appearance and removal access. Approve the exact material and optical finish in writing.
- Inspect the exposed face under the intended lighting. Look for scratches, coating defects and finish inconsistency across lengths.
- Build one real mounting sample. Check fixing support, the finishing edge, corner alignment and cable access.
- Run the intended LED configuration to evaluate thermal behaviour and visual consistency under the proposed conditions. Aluminum alone does not establish a maximum permitted wattage.
- Agree on carton protection, length identification and version labels. Keep the approved sample and specification with the order.
6. Customization and Project Support
For a project or OEM enquiry, send the model and version, a section of the wall or ceiling, intended lengths and quantities, LED tape details and the required appearance. A CAD file or marked-up sketch helps identify whether this section fits or another product should be reviewed.
7. Request a Quote
Request a drawing review or sample for LSH-6026. Include the installation section, order quantity, required lengths, finish, LED tape dimensions and destination. Unionopto can review the requirements and confirm the available configuration before an order is agreed.
