LSH-117 LED Cornice Aluminum Profile
LSH-117 for ceiling cornice and wall junction lighting. See the model-specific section drawing; final dimensions and configuration require confirmation.
Item No.: LSH-117
1. Main Features

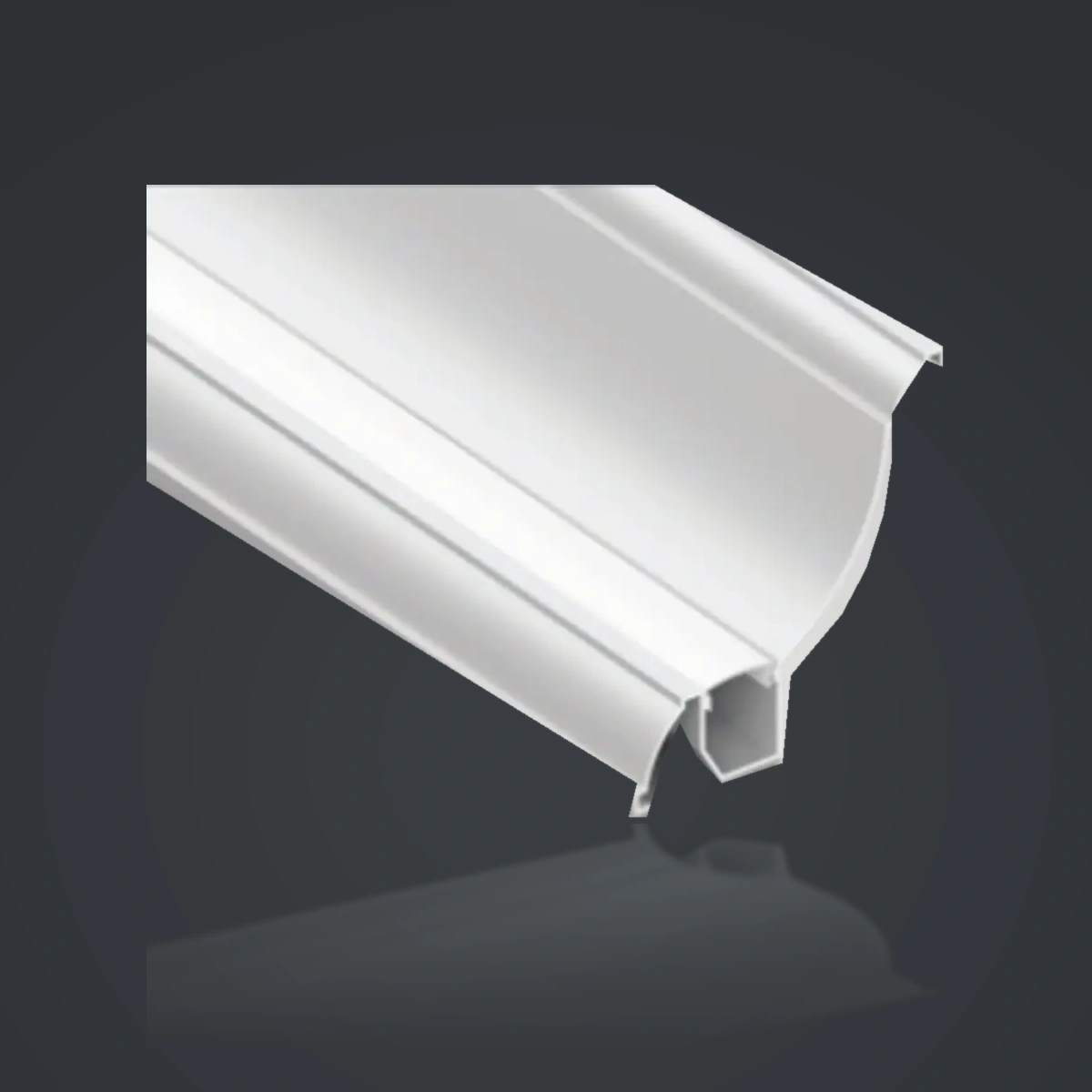

LSH-117 is a led cornice aluminum profile for ceiling cornice and wall junction lighting. The catalogue shows a curved or shaped cornice face with an integrated light chamber. Use its individual cross-section to assess the architectural detail, fixing area and LED tape arrangement.
Compare the deeper cornice face with 6565. Check clearance and the distance to the ceiling finish. A product photograph is useful for comparing shape, but the final installation should follow an approved drawing and a physical sample. Confirm the complete profile, diffuser, LED tape and mounting combination before ordering.
- Section-specific design: The visible structure combines a curved or shaped cornice face with an integrated light chamber.
- Architectural coordination: Check the full cornice envelope and the wall-to-ceiling junction.
- LED and cover selection: Compare the complete tape and diffuser combination for fit, appearance and access. A visible cover shape does not identify its material or transmission.
- Order consistency: Approve the same profile version, finish, cover and accessories for the sample and bulk order.
2. Technical Specifications
| Product | LSH-117 LED Cornice Aluminum Profile |
|---|---|
| Model | LSH-117 |
| Catalogue version | No additional version noted |
| Intended application | ceiling cornice and wall junction lighting |
| Overall dimensions | [TO CONFIRM: approved external width and height, units and tolerances] |
| Catalogue envelope reference | 86 × 80 (catalogue transcription; units, envelope interpretation and production dimensions TO CONFIRM) |

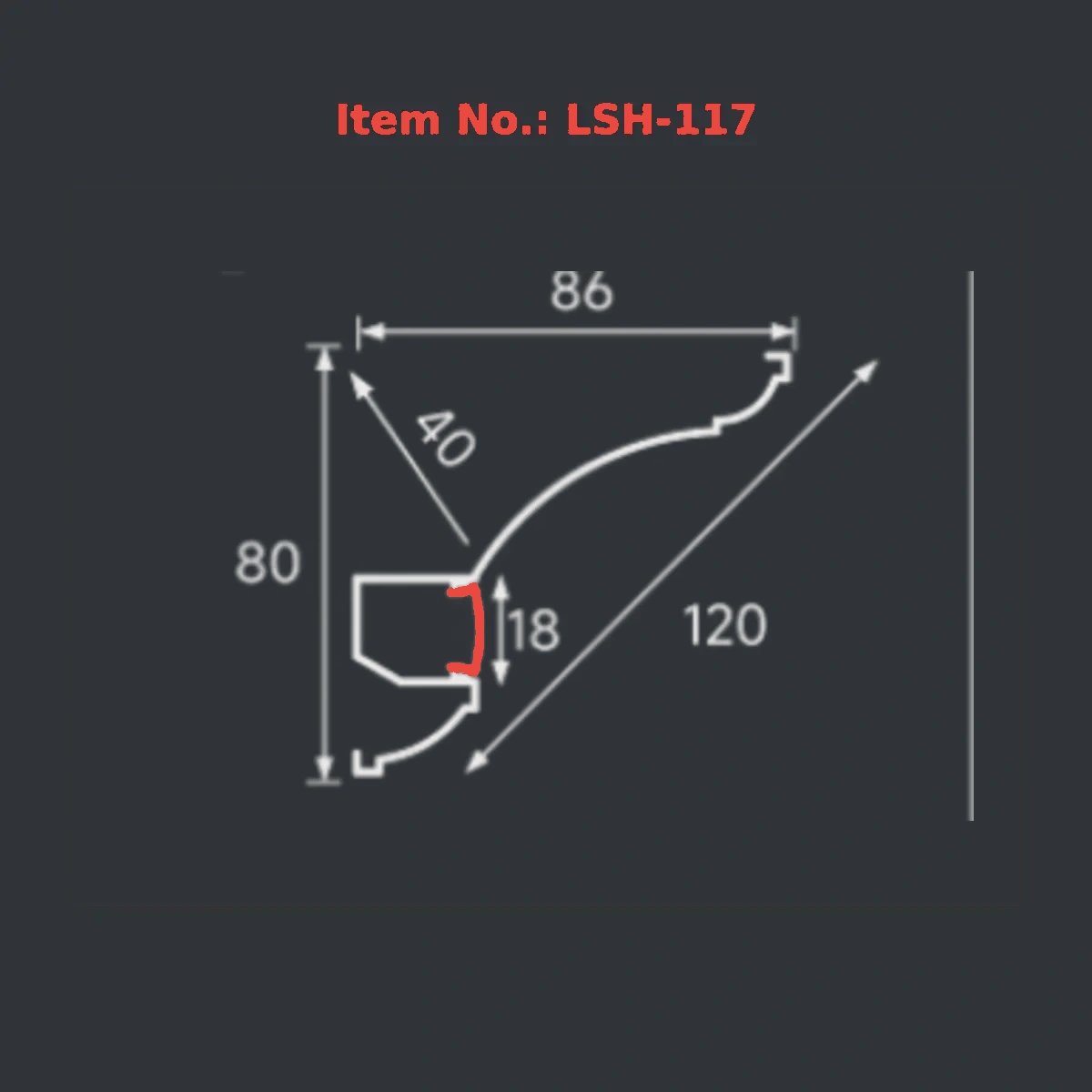

| Drawing status | Catalogue drawing supplied; not an approved production or cut-out drawing |
| Aluminum alloy / temper | [TO CONFIRM: alloy, temper and supporting documentation] |
| Wall thickness / weight | [TO CONFIRM: nominal thickness, tolerances and weight per metre] |
| Diffuser material / finish | [TO CONFIRM: matching cover, optical finish and transmission] |
| Usable LED tape bed | [TO CONFIRM: clear width, tape thickness, solder and connector allowance] |
| Length / surface finish | [TO CONFIRM: available lengths, finish and colour options] |
| Accessories / packaging | [TO CONFIRM: fixing components, end caps, joiners and packing] |
| Electrical / IP / certification | [TO CONFIRM: complete lighting assembly; no rating inferred from profile alone] |
| Warranty / lead time / MOQ | [TO CONFIRM: written quotation and order terms] |
Drawing note: Model numbers are identifiers. They do not establish usable LED tape width, ceiling cut-out dimensions or a guaranteed installation clearance.
3. Applications
Ceiling-wall junctions
Coordinate the shaped cornice face with the room proportions and ceiling finish. Check the complete envelope before fixing.
Residential living areas
Evaluate the illuminated sample from normal seating positions. A decorative cornice channel does not by itself determine room brightness.
Hospitality interiors
Plan straight lengths, corner cuts and service access. Confirm a consistent finish across all visible runs.
These are proposed applications based on the section geometry. Suitability for moisture, outdoor exposure, fire-rated construction or other special conditions requires a separate verified specification.
4. How to Choose the Right Profile
- Start with this section: Compare the deeper cornice face with 6565. Check clearance and the distance to the ceiling finish.
- Check the mounting detail: Show the board thickness, support, fixing positions and finished plaster or paint line. Confirm whether the profile is installed before or after the board and finish.
- Test LED tape fit: Measure the usable bed and include the PCB, adhesive, solder pads, cable and connectors. Do not order tape by the model number alone.
- Review light appearance: Test the chosen LED density, diffuser and surrounding surfaces. A dot-free appearance depends on the complete arrangement.
- Plan access: Identify how the diffuser, tape, connector and driver can be reached after installation. Confirm cable routes before closing the ceiling.
5. Quality Checks Before Bulk Purchasing
Evaluate a sample of LSH-117 against the latest drawing before approving a bulk order. A lower price can reflect a different version, cover, wall thickness, finish, included accessory set or packaging specification.
- Compare external dimensions, the usable light chamber, cover locking features and straightness with the agreed tolerances.
- Measure wall thickness at agreed points. Do not replace a measured specification with labels such as heavy-duty or premium.
- Check the cover for fit, consistent appearance and removal access. Approve the exact material and optical finish in writing.
- Inspect the exposed face under the intended lighting. Look for scratches, coating defects and finish inconsistency across lengths.
- Build one real mounting sample. Check fixing support, the finishing edge, corner alignment and cable access.
- Run the intended LED configuration to evaluate thermal behaviour and visual consistency under the proposed conditions. Aluminum alone does not establish a maximum permitted wattage.
- Agree on carton protection, length identification and version labels. Keep the approved sample and specification with the order.
6. Customization and Project Support
For a project or OEM enquiry, send the model and version, a section of the wall or ceiling, intended lengths and quantities, LED tape details and the required appearance. A CAD file or marked-up sketch helps identify whether this section fits or another product should be reviewed.
- [TO CONFIRM: finish and colour availability]
- [TO CONFIRM: cut lengths, end treatment and connection accessories]
- [TO CONFIRM: diffuser material, optical finish and replacement availability]
- [TO CONFIRM: any new tooling, drawing review and sample approval steps]
Compare quotations for the same scope. Ask whether the price includes covers, end caps, machining, packaging and shipping. Tooling, sample fees, taxes, Incoterms, currency, deposit, balance payment and lead time must be stated in the quotation. No price or payment percentage is assumed here.
7. Request a Quote
Request a drawing review or sample for LSH-117. Include the installation section, order quantity, required lengths, finish, LED tape dimensions and destination. Unionopto can review the requirements and confirm the available configuration before an order is agreed.
